INCH-POUND
MIL-DTL-52525/24B
30 June 1998
SUPERSEDING
MIL-F-52525/24A
30 June 1987
DETAIL SPECIFICATION SHEET
FITTINGS, HOSE, CLAMP-ON TO 4-BOLT
SPLIT-FLANGE, 45° BENT TUBE, TYPE 100R10
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-52525. The fittings described herein are for use with
MIL-DTL-52471, type 100R10, 4-spiral-wrap hose.

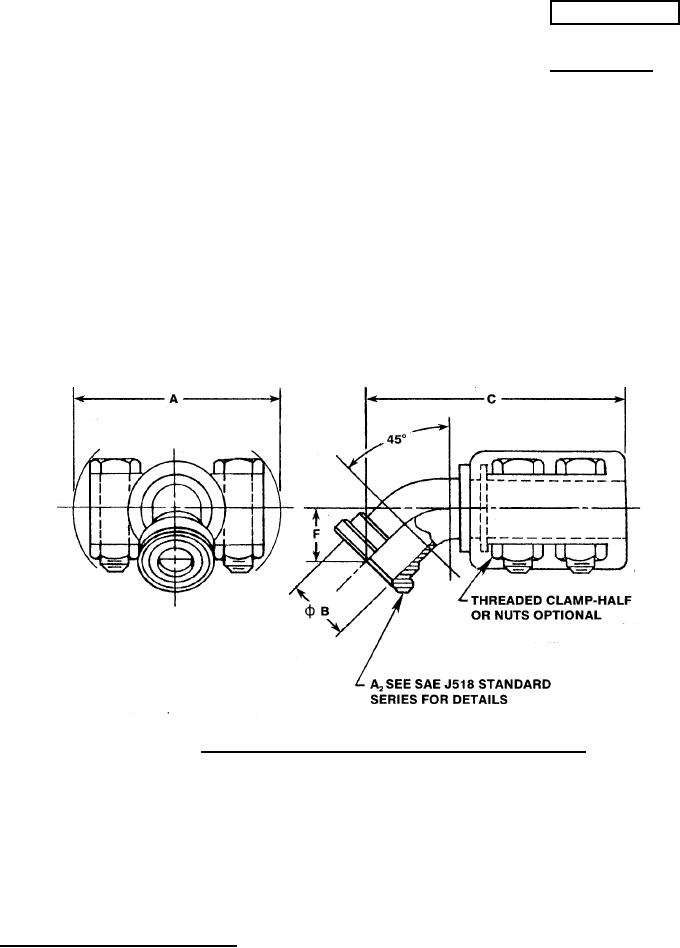

FIGURE 1. Fitting, clamp-on to 4-bolt split-flange, 45° bent tube.
1 of 3
AMSC N/A
FSC 4730
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
