INCH-POUND
MIL-DTL-52525/23B
30 June 1998
SUPERSEDING
MIL-F-52525/23A
30 June 1987
DETAIL SPECIFICATION SHEET
FITTINGS, HOSE, CLAMP-ON TO 4-BOLT
SPLIT-FLANGE, STRAIGHT, TYPE 100R10
This specification is approved for use by all Department and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-52525. The fittings described herein are for use with
MIL-DTL-52471, type 100R10, 4-spiral-wrap hose.

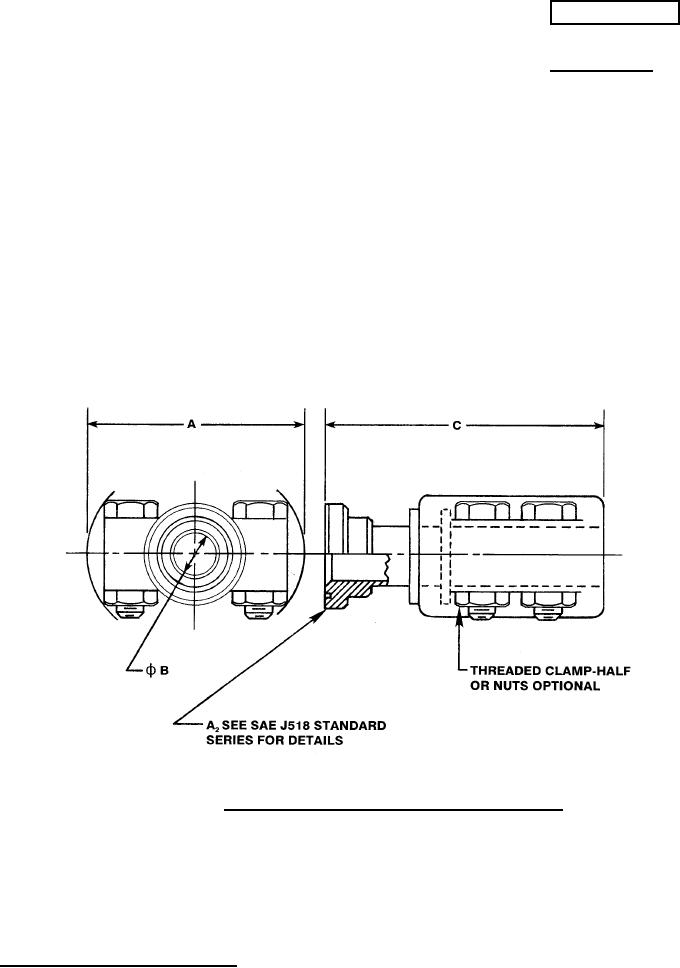

FIGURE 1. Fitting, clamp-on to 4-bolt split-flange, straight.
1 of 3
AMSC N/A
FSC 4730
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
