INCH-POUND
MIL-DTL-52525/1D
21 April 2011
SUPERSEDING
MIL-DTL-52525/1C
12 November 2008
DETAIL SPECIFICATION SHEET
FITTINGS, HOSE, SCREW-ON TO 37° FLARE FEMALE SWIVEL,
STRAIGHT, SAE-J516 TYPE, FOR ASSEMBLY WITH SAE-J517,
TYPE 100R2 HOSE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-52525.

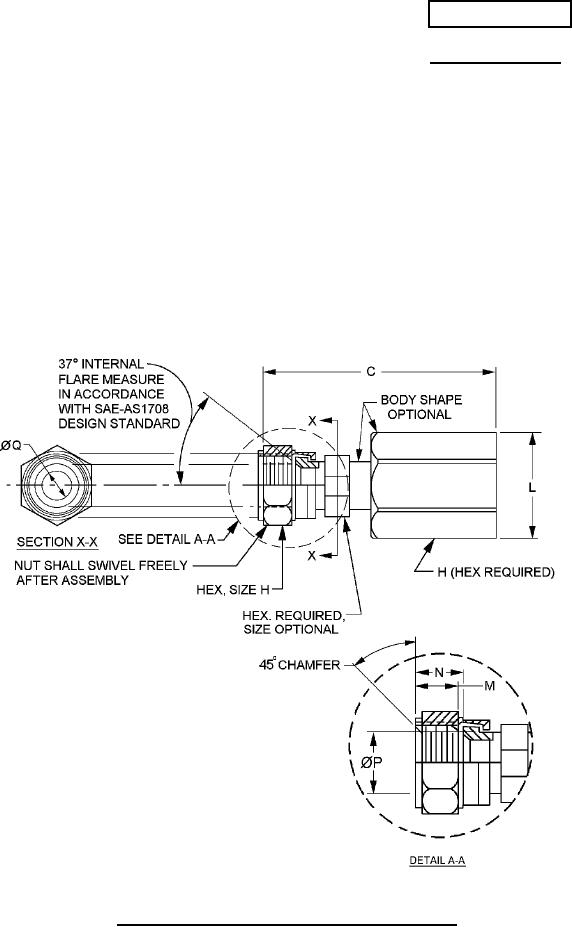

FIGURE 1. Fitting, screw-on to 37° flare female swivel, straight.
AMSC N/A
FSC 4730
