INCH-POUND
AN807 REV 7
20 April 2007
SUPERSEDING
AN807 REV 6
30 August 1982
DETAIL SPECIFICATION SHEET
ADAPTER, STRAIGHT, TUBE TO HOSE
Inactive for new design after 20 April 2007. For new
design, use SAE AS5180.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
SAE AS4843/1.
Inches
mm
1.172
29.77
1.297
32.94
1.625
41.28

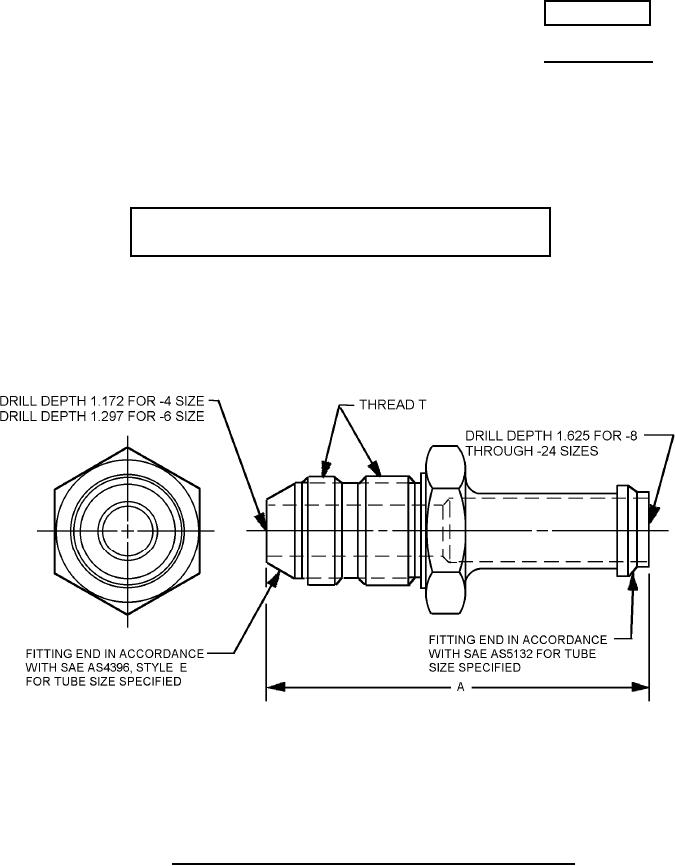

FIGURE 1. Adapter, straight, tube to hose, dimensions and configuration.
