INCH-POUND
AN775 Rev 14
19 July 2011
SUPERSEDING
AN775 Rev 13
16 March 1994
DETAIL SPECIFICATION SHEET
BOLT - FLUID PASSAGE
Reinstated after 19 July 2011. Inactive for new design.
For new design, use SAE-AS5161.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
SAE-AS4875.
Inches
mm
.001
0.03
.002
0.05
.005
0.13
.010
0.25
.015
0.38
.025
0.64

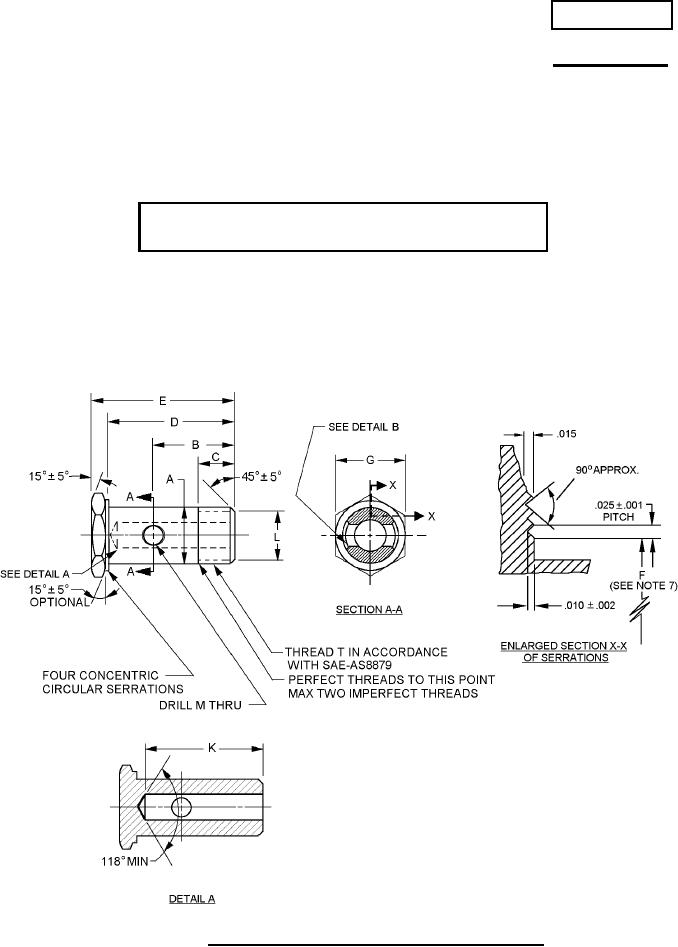

FIGURE 1. Bolt - fluid passage dimensions and configurations.
AMSC N/A
FSC 4730
