INCH-POUND
AN6027 Rev 5
4 November 2013
SUPERSEDING
AN6027 Rev 4
26 March 2003
DETAIL SPECIFICATION SHEET
COUPLING HALF, QUICK DISCONNECT
Inactive for new design after 5 March 1999. For new
design, use MIL-PRF-7891.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet.
Inch
mm
Inch
mm
.001
0.03
.196
4.98
.002
0.05
.304
7.72
.003
0.08
.312
7.92
.004
0.10
.427
10.85
.005
0.13
.434
11.02
.006
0.15
.453
11.51
.010
0.25
.562
14.27
.100
2.54
.736
18.69
.109
2.77
.969
24.61

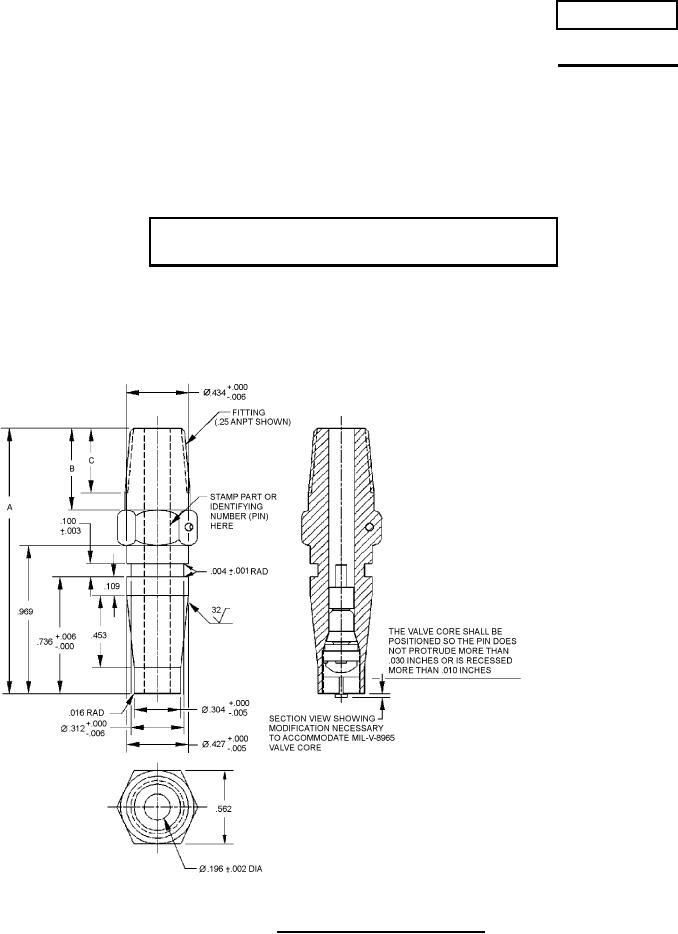

FIGURE 1. Coupling half, quick disconnect.
AMSC N/A
FSC 4730
