A-A-52405A
* Centerline of bulb
radius (R) from
tube end: 0.250 ± 0.031
|
CRES |
Aluminum |
Steel |
Aluminum |
Hose I.D. |
A MIN. |
B DIA ±0.005 |
C +0.000 -0.016 |
D DIA MIN. |
E MIN. |
F MIN. |
|
PIN No. |
PIN No. |
Former MS Part No. |
||||||||
|
A52405-1 |
A52405-2 |
MS24521-1 |
MS24521-2 |
0.250 |
1.781 |
0.250 |
0.500 |
0.326 |
0.563 |
0.031 |
|
A52405-3 |
A52405-4 |
MS24521-3 |
MS24521-4 |
0.375 |
1.859 |
0.375 |
0.688 |
0.451 |
0.719 |
0.031 |
|
A52405-5 |
A52405-6 |
MS24521-5 |
MS24521-6 |
0.500 |
1.938 |
0.500 |
0.875 |
0.576 |
0.875 |
0.031 |
|
A52405-7 |
A52405-8 |
MS24521-7 |
MS24521-8 |
0.625 |
2.000 |
0.625 |
1.125 |
0.701 |
1.000 |
0.045 |
|
A52405-9 |
A52405-10 |
MS24521-9 |
MS24521-10 |
0.750 |
2.078 |
0.750 |
1.313 |
0.826 |
1.125 |
0.045 |
|
A52405-11 |
A52405-12 |
MS24521-11 |
MS24521-12 |
1.000 |
2.219 |
1.000 |
1.625 |
1.124 |
1.438 |
0.045 |
|
A52405-13 |
A52405-14 |
MS24521-13 |
MS24521-14 |
1.250 |
2.375 |
1.250 |
2.000 |
1.374 |
1.750 |
0.045 |
|
A52405-15 |
A52405-16 |
MS24521-15 |
MS24521-16 |
1.500 |
2.547 |
1.500 |
2.375 |
1.644 |
2.000 |
0.045 |
NOTES:
1. Dimensions are in inches.
2. All tube legs – 90° apart from center line, as shown.
3. Tube bulb same at all ends.

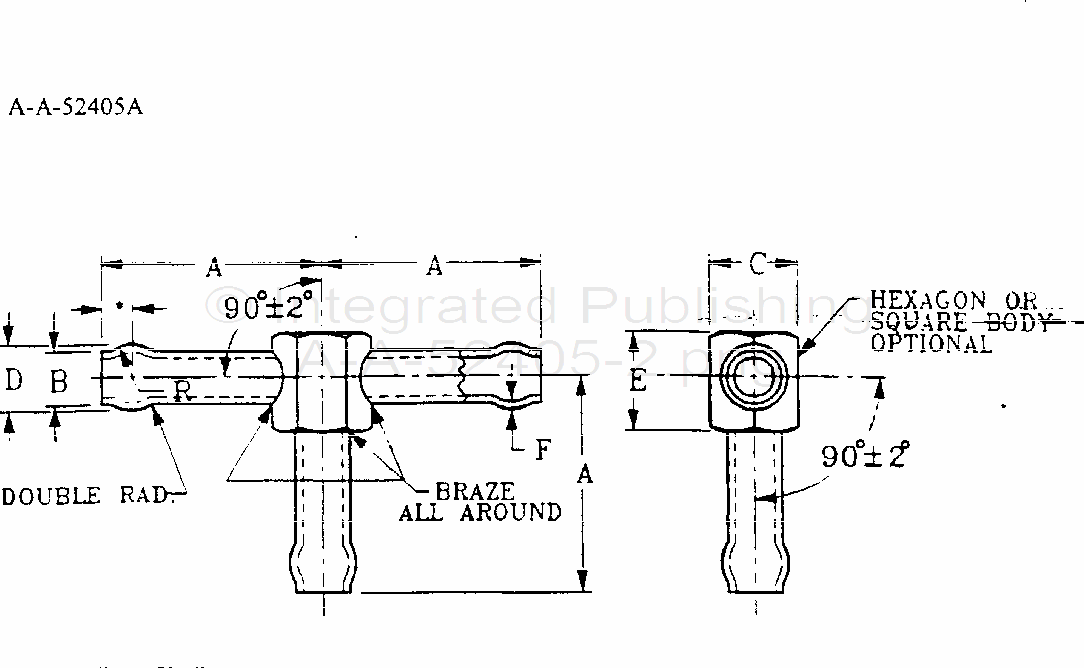

FIGURE 1. Tee, hose (low pressure).
