INCH-POUND
MS17835F
3 December 2002
SUPERSEDING MS17835E
20 June 1991
DETAIL SPECIFICATION SHEET
CONNECTOR, PNEUMATIC STARTER DUCT, FLANGE, FEMALE
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification sheet and the design and test specified herein.

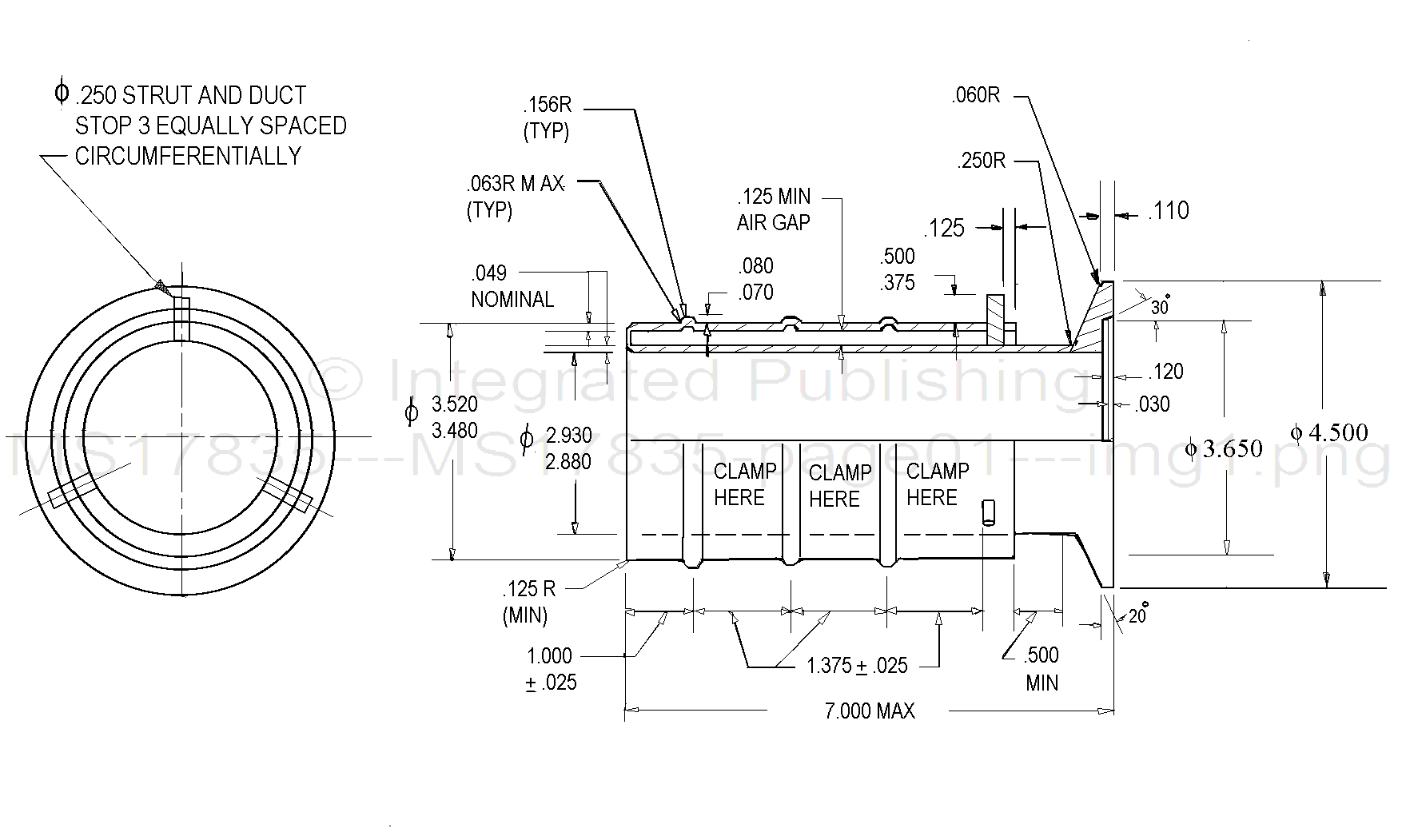

FIGURE 1. Flange detail dimensions.
AMSC N/A Page 1 of 2 FSC 4730
DISTRIBUTION STATEMENT A: Approved for public release, distribution is unlimited.
